Actual Product May Vary From Image

3782-6 RAC

Name: 3782-6 RAC
Brand: Raco Industries
SKU: 3782-6 RAC
Availability: OutOfStock

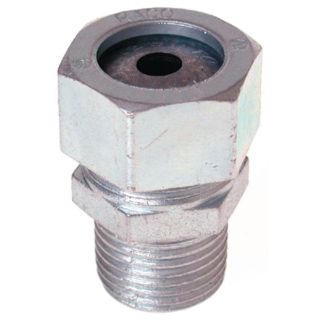

RACO® 3782-6 Form 2 Straight Strain Relief Cord Grip Connector, 1/2 in Trade, 0.5 to 0.6 in Cable Openings, Malleable Iron/Steel, Electro-Plated Zinc

Manufacturer: Raco Industries

Manufacturer part number: 3782-6

Availability: Expected Leadtime 91 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

RACO®

Type

Form 2 Straight Strain Relief

Description

RACO® Cord Grip Connector, Form 2 Straight Strain Relief, 1/2 in, Cable Openings: 0.5 to 0.6 in, For Use With: Liquid Tight Flexible Conduit/Cord, Malleable Iron/Steel, Silver, Electro-Plated Zinc, 1-17/16 in L x 1-3/16 in W

Application

Used in outdoor/indoor locations, wet/dry and use to positively bond the conduit to a box or enclosure applications

Standards

cULus Listed | UL File No. E195973, Class 1, Div 2, Class 2, Div 1 and 2, and Class 3, Div 1 and 2

Features

Unique neoprene grommet design grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
Washers have size range imprinted for identification eliminates misidentifying inventory
Locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel
3/8 to 1-1/2 in malleable iron bodies, 3/8 to 1 in steel nuts, 1-1/4 to 4 in malleable iron nuts
19/32 in L thread
1/2-14 NPT thread specification
UPC barcoded
Unique neoprene grommet design, imprinted size range on washers

Specifications

Cable Openings:	0.5 to 0.6 in
Color:	Silver
Country of Origin:	CN
Dimensions:	1-17/16 in L x 1-3/16 in W
Finish:	Electro-Plated Zinc
Material:	Malleable Iron/Steel
Suitable For Use With:	Liquid Tight Flexible Conduit/Cord
Trade Size:	1/2 in
