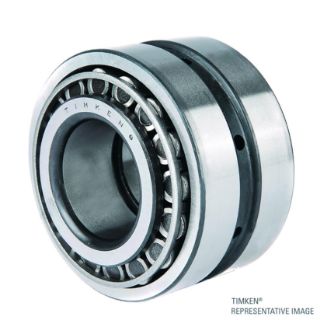

Picture of 3784 90144 TKN
Actual Product May Vary From Image

3784 90144 TKN

Tapered Roller Bearing Double Cup Assembly
Manufacturer: Timken
Manufacturer part number: 3784-90144
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.
TRB Double Cup Assembly | Imperial | 93.3 mm 3.7 in OD | 65.1 mm 2.6 in Width

Features

  • Widest choice including both inch and metric sizes
  • Engineered to deliver higher speeds, heavier loads and longer life
  • Unrivaled technology and engineering support
  • Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:Assembly
Assembly Number:90144
Bearing Material:Steel
Bearing Type:Unmounted Tapered Roller Bearing
Bore Type:Straight Bore
Cage (Retainer) Type:Steel
Cage Material:Steel
Component (I/R; O/R assembly):Assembly
Dynamic Load Rating:47800
Inner Race Width (in):2.5625
Inner Race Width (mm):65.0875
Load Rating UOM:LB
Material - Rolling Elements:Steel
Outer Diameter (in):3.6718
Outer Diameter (mm):93.26372
Outer Diameter Type:Straight OD
Outer Race Width (in):2.0625
Outer Race Width (mm):52.3875
Overall Width (in):2.5625
Overall Width (mm):65.0875
Precision class:Class 2 (Standard)
Raceway Style:Tapered Roller Bearing
Rolling Element:Tapered Roller
Row Type:Double
Static Load Rating:68600
