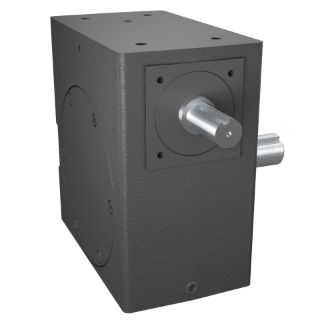

Actual Product May Vary From Image

381L 40/1 C WR HUB

Name: 381L 40/1 C WR HUB
SKU: 381L 40/1 C WR HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0220-08285 380L Right Angle Single Reduction Style C Worm Gear Reducer, Shaft Input, Shaft Output, 4.22 hp Input, 40:1 Gear, 43.8 rpm Maximum Output, 4816 in-lb Output Torque Rating

Manufacturer part number: 0220-08285

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: 380L, 40:1 Gear Ratio, 4.22 hp Input, Shaft Input, Shaft Output, 1 in Dia x 2.48 in L Input, 1.5 in Dia x 3.88 in L Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4816 in-lb Output, 3-3/4 in Centre Distance, 1/4 x 1/8 in Input, 3/8 x 3/16 in Output Keyway, 79.2 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 10.062 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3-3/4 in
Dimensions:	10.062 in H
Efficiency:	79.2 %
Gear Ratio:	40:1
Horsepower:	4.22 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1 in Dia x 2.48 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 3/8 x 3/16 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	43.8 rpm
Output Size:	1.5 in Dia x 3.88 in L
Output Type:	Shaft
Series:	380L
Torque Rating:	4816 in-lb Output
