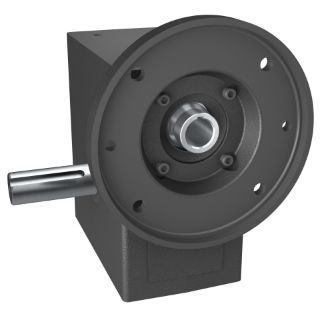

Actual Product May Vary From Image

384L 10/1 B WR 182TC HUB

Name: 384L 10/1 B WR 182TC HUB
SKU: 384L 10/1 B WR 182TC HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0220-08393 380L Right Angle Single Reduction Style B Worm Gear Reducer, C-Face Quill Input, Shaft Output, 12.6 hp Input, 10:1 Gear, 175 rpm Maximum Output, 4200 in-lb Output Torque Rating

Manufacturer part number: 0220-08393

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 380L, 10:1 Gear Ratio, 12.6 hp Input, C-Face Quill Input, Shaft Output, 1-1/8 in Dia Input, 1.5 in Dia x 3.88 in L Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4200 in-lb Output, 3-3/4 in Centre Distance, 1/4 x 1/8 in Input, 3/8 x 3/16 in Output Keyway, 93 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3-3/4 in
Efficiency:	93 %
Gear Ratio:	10:1
Horsepower:	12.6 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Input, 3/8 x 3/16 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	1.5 in Dia x 3.88 in L
Output Type:	Shaft
Series:	380L
Torque Rating:	4200 in-lb Output
