385 60/1 B WR 56C 2.188 HUB

Name: 385 60/1 B WR 56C 2.188 HUB
Brand: Hub City
SKU: 385 60/1 B WR 56C 2.188 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-78826

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

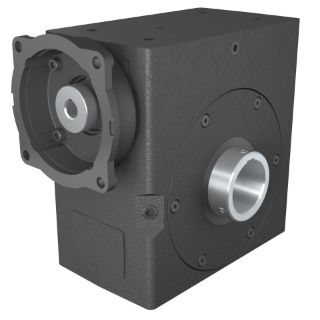

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 380, 60:1 Gear Ratio, 2.77 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 2.188 in Dia Output, 29.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 3967 in-lb Output, 3-3/4 in Centre Distance, 3/16 x 3/32 in Input, 1/2 x 1/8 in Output Keyway, 66.2 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting

Specifications

Centre Distance:	3-3/4 in
Efficiency:	66.2 %
Gear Ratio:	60:1
Horsepower:	2.77 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input, 1/2 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	29.2 rpm
Output Size:	2.188 in Dia
Output Type:	Hollow Bore
Series:	380
Torque Rating:	3967 in-lb Output
