389A 90336 TKN

Name: 389A 90336 TKN
Brand: Timken
SKU: 389A 90336 TKN
Availability: OutOfStock

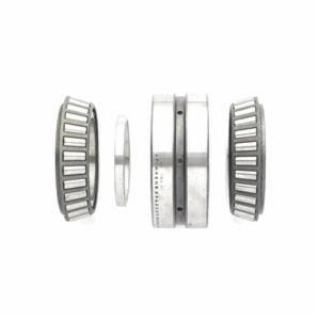

Timken® 389A-90336 385 Type TDO Tapered Roller Bearing Assembly, 2.12 in Dia Bore, 3.93 in OD, 2 Rows, 1.93 in W, 24200 lb Dynamic/24100 lb Static Load

Manufacturer: Timken

Manufacturer part number: 389A-90336

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Type TDO

Description

Timken® Tapered Roller Bearing Assembly, Type TDO, Series: 385, 2.12 in Bore Dia, 3.93 in Outside Dia, 2 Rows, 1.93 in Width, 24200 lb Dynamic/24100 lb Static, -65 to 250 deg F

Application

Heavy Duty Gear Drives and Various Industrial Configurations

Features

Double cup and two single cones
When spacers are used, bearing is furnished as a preset, matched assembly
Cup features groove and lubrication holes in the outside diameter

Specifications

Bore Diameter:	2.12 in
Load Capacity:	24200 lb Dynamic/24100 lb Static
Number of Rows:	2
Outside Diameter:	3.93 in
Series:	385
Temperature Rating:	-65 to 250 deg F
Width:	1.93 in
