Actual Product May Vary From Image

38AST ARL

Name: 38AST ARL
Brand: Arlington
SKU: 38AST ARL
Price: 1.46 USD
Availability: InStock

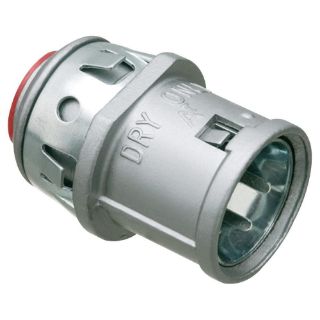

Arlington Snap2IT® 38AST Straight Cable Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.45 to 0.612 in Cable Openings, Die Cast Zinc

Manufacturer: Arlington

Manufacturer part number: 38AST

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	50	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.46

Qty:

Product Details

Brand Name

Arlington

Type

Straight

Alternate Supplier #

Grainger - 4JWF5

Description

Arlington Snap2IT® connectors are designed for safe and fast installations of flex, MC, AC and HCF cable and cover the widest cable ranges in the industry. They save time too-about 17 s per fitting. Just snap the fitting onto the cable, then into the electrical box. No tools are required for the installation.

Arlington Snap2IT® Cable Connector, Straight, 3/8 in Trade, 1/2 in Knockout, Cable Openings: 0.45 to 0.612 in, Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI/MCI-A Cable, Snap-In Connection, Die Cast Zinc, Silver, 1 in Dia x 1.41 in L Dimensions

Application

For steel and aluminum flexible conduit

Standards

CSA File No. LR49636 | cULus 372D | UL Listed

Features

Low cost saves time and money
Fast and easy installation
Die cast zinc fittings cost much less than steel or malleable iron fitting
Reduces inventory comes with additional end stop bushings
Built-in end stop in fitting
Concretetight when taped
1.12 in OD cable, 1 in OD wire bundle

Specifications

Cable Openings:	0.45 to 0.612 in
Cable Type:	Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI/MCI-A
Color:	Silver
Connection Type:	Snap-In
Country of Origin:	US
Dimensions:	1 in Dia x 1.41 in L
Knockout Size:	1/2 in
Material:	Die Cast Zinc
Trade Size:	3/8 in
