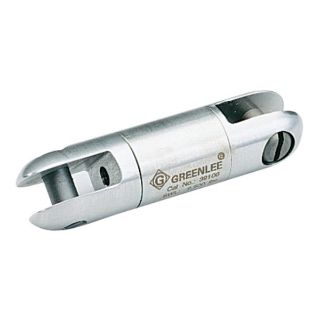

Greenlee® 39106 Swivel, 2500 lb, 3/8 in W Eye

Manufacturer: Greenlee

Manufacturer part number: 39106

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Greenlee®

Description

The Greenlee® swivels, when used with a rope connector, are intended for connecting the pull rope to the utility product in an overhead or underground application. The swivel permits rotation of the pull rope while protecting the product from twisting.

Greenlee® Swivel, 2500 lb, 31/32 in Eye Length, 3/8 in Eye Width, 5/16 in Eye ID, 2-1/2 in Width Between Eyes, Slotted Clevis Pin, 3-3/8 in Overall Length, Stainless Steel

Application

For roping to swivel connector

Standards

ARRA Compliant

Features

Helps eliminate winding and tangling of rope and cable during pull
Connects grip and pulling rope
All stainless steel body construction
Efficient thrust and roller bearing construction allows smooth rotation, even under full-load
Clevis pins are "shoulder bolt" style, so load on both sides of clevis is taken on the shoulder, not on the thread
Select the swivel with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
1350 underground safe working limit/2250 lb overhead load safe working limit
Shoulder bolt style

Specifications

Country of Origin:	CA
Eye Inside Diameter:	5/16 in
Eye Length:	31/32 in
Eye Width:	3/8 in
Load Capacity:	2500 lb
Material:	Stainless Steel
Overall Length:	3-3/8 in
Pin Type:	Slotted Clevis
Width Between Eyes:	2-1/2 in
