39110 GRL

Product Details

Manufacturer:
Manufacturer part number:
39110
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Greenlee®

Alternate Supplier #

Grainger - 34E873

Description

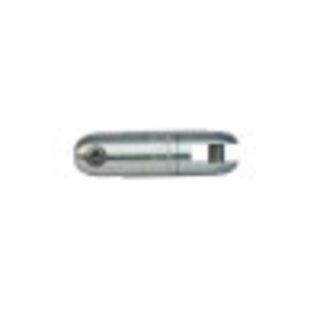

The Greenlee® swivels, when used with a rope connector, are intended for connecting the pull rope to the utility product in an overhead or underground application. The swivel permits rotation of the pull rope while protecting the product from twisting.
Greenlee® Swivel, 15000 lb, 2-1/16 in Eye Length, 25/32 in Eye Width, 2-1/16 in Eye ID, 5-1/8 in Width Between Eyes, Hex Clevis Pin, 7 in Overall Length, Stainless Steel

Application

For roping to swivel connector

Standards

ARRA Compliant

Features

  • Helps eliminate winding and tangling of rope and cable during pull
  • Connects grip and pulling rope
  • All stainless steel body construction
  • Efficient thrust and roller bearing construction allows smooth rotation, even under full-load
  • Clevis pins are "shoulder bolt" style, so load on both sides of clevis is taken on the shoulder, not on the thread
  • Select the swivel with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
  • 15000 lb underground safe working limit, 9000 lb overhead load safe working limit
  • Shoulder bolt style

Specifications

Country of Origin:CA
Eye Inside Diameter:2-1/16 in
Eye Length:2-1/16 in
Eye Width:25/32 in
Load Capacity:15000 lb
Material:Stainless Steel
Overall Length:7 in
Pin Type:Hex Clevis
Width Between Eyes:5-1/8 in
