396-3M-06 GAT

Name: 396-3M-06 GAT
Brand: Gates Corporation
SKU: 396-3M-06 GAT
Price: 12.64 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

396-3M-06

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$12.64 / EA

Description

Brand Name

Gates®

Description

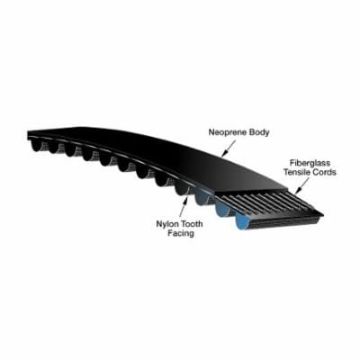

PowerGrip® HTD® belts have a larger, more robust tooth profile for increased capacity, as compared to timing belts.

Gates® PowerGrip® HTD® Synchronous Belt, Series: 9293, 132 Teeth, 3 mm Pitch, 396 mm Overall Length, 6 mm Width, -30 to 180 deg F, Curved Tooth Profile, Neoprene, Fiberglass Reinforced Material

Application

Data Storage, Hand Power Tools, Postage Handling, Food Processors, Office Machines, Centrifuges, Money Handling, Medical Diagnostic, Sewing Machines, Ticket Dispensers, Robotics, Vending Machines and Vacuum Cleaners

Standards

RMA Standard

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Nylon tooth facing provides a durable wear surface for long service life
Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
Neoprene body provides protection against grime, grease, oil and moisture
Thirty percent increase in horsepower ratings, as compared to traditional timing belts

Specifications

Country of Origin:	US
Material:	Neoprene
Number of Teeth:	132
Overall Length:	396 mm
Pitch:	3 mm
Reinforced Material:	Fiberglass
Series:	9293
Temperature Range:	-30 to 180 deg F
Tooth Profile:	Curved
Width:	6 mm
