397-3 TKN

Product Details

Manufacturer:
Manufacturer part number:
397-30000
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Timken®

Type

Type TS

Description

TS single row is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be set to the required clearance endplay or preload condition to optimize performance.

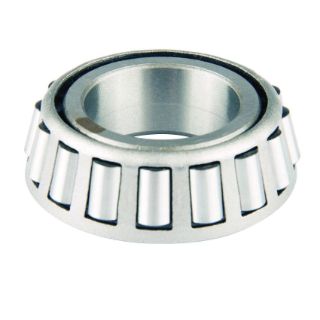

Timken®, 397-30000, Tapered Roller Bearing, Type TS, 2.362 in Bore, 22200 lb Dynamic/28100 lb Static Load, Steel Cage, -65 to 250 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles, Trailer Wheels and General Purpose Applications

Standards

ABMA/ANSI Standard

Features

  • Internal geometry provides increased stiffness and exceptional runout
  • Radial runout high point marked for accurate installation
  • Timken® outer (cup) and inner (cone) rings should be used in combination

Includes

(1) 0.8660 in W Cone

Specifications

Bore Diameter:2.362 in
Cage Material:Steel
Load Capacity:22200 lb Dynamic/28100 lb Static
Temperature Rating:-65 to 250 deg F

Products Specifications

Brand Name
TIMKEN CORPORATION
