3B EB RHUB KOP

Picture of 3B EB RHUB KOP
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1961911
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Kop-Flex®

Description

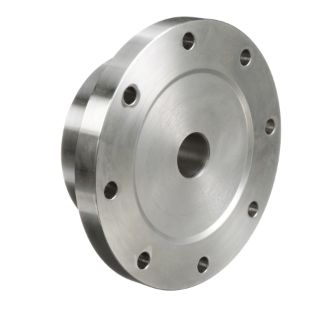

Kop-Flex® Rigid Hub, 3 Coupling, 4 in Bore Dia, 5-3/4 in Hub Dia, 2-29/32 in Hub Length, 6800 rpm Maximum, 2-29/32 in Length Through Bore, Steel

Application

For use with model B exposed bolt gear coupling

Features

  • Greater lubricant capacity allows longer periods between scheduled lubrications and longer service life
  • Straight tooth design provides improved load distribution, lower stresses and longer life for the gear teeth
  • Less frequently required lubrication
  • Smaller and lighter than FAST'S® coupling, but with the same maximum bore capacities
  • Tight tolerance flange bolt holes
  • All-metal end ring seal design for maximum service life
  • The industry standard for over 75 years
  • Provides 300% greater lubricant capacity than o-ring style couplings

Specifications

Bore Diameter:4 in
Country of Origin:MX
Coupling Size:3
Hub Diameter:5-3/4 in
Hub Length:2-29/32 in
Length Through Bore:2-29/32 in
Material:Steel
Maximum Speed:6800 rpm
