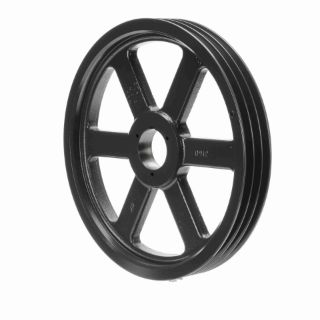

Actual Product May Vary From Image

3B5V160 BRN

Name: 3B5V160 BRN
Brand: Regal Rexnord
SKU: 3B5V160 BRN
Price: 462.77 USD
Availability: OutOfStock

Browning® 3694387 B5V® Type 4 Arm Multiple Sheave, 1/2 to 2-7/16 in Split Taper Bore, 16.28 in OD, 3 Grooves, 15.8 in (A)/16.3 in (B)/16.1 in (5V) Dia Pitch, 2-7/16 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 3694387

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$462.77

Qty:

Product Details

Brand Name

Browning®

Type

Type 4 Arm

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 4 Arm, Series: B5V®, Split Taper Bore, 1/2 to 2-7/16 in Bore, 16.28 in OD, 15.8 in (A)/16.3 in (B)/16.1 in (5V) Pitch Diameter, 3 Grooves, 2-7/16 in Face Width, B Bushing, 2-27/32 in Overall Length, For Use With: GripBelt® A and B, 5V Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Combination groove all Browning® B5V sheaves permit the running of A, 4L, B, 5L and 5V belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
New casting design the B5V® castings were developed using CAD and finite elements analysis to determine where to add and eliminate material

Specifications

Bore Diameter:	1/2 to 2-7/16 in
Bore Type:	Split Taper
Bushing Type:	B
Country of Origin:	MX
Face Width:	2-7/16 in
Material:	Cast Iron
Number of Grooves:	3
Outside Diameter:	16.28 in
Overall Length:	2-27/32 in
Pitch Diameter:	15.8 in (A)/16.3 in (B)/16.1 in (5V)
Series:	B5V®
Suitable For Use With:	GripBelt® A and B, 5V Cross Section V-Belt
