Actual Product May Vary From Image

3GB5VX1000 BRN

Name: 3GB5VX1000 BRN
Brand: Regal Rexnord
SKU: 3GB5VX1000 BRN
Availability: OutOfStock

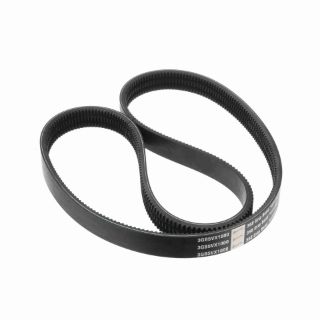

Browning® 358 Gripband® Gripnotch® 3080173 Banded V-Belt, 5VX Section, 5/8 in W Top, 100 in L Outside, 17/32 in THK, EPDM

Manufacturer: Regal Rexnord

Manufacturer part number: 3080173

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Banded

Description

Browning® 358 Gripband® Gripnotch® V-Belt, Banded, 5VX Section, 5/8 in Top Width, 100 in Outside Length, 17/32 in Thickness, 3 Ribs, 4.4 to 6.7/7.1 to 10.9/11.8 to 16 in Diameter Minimum Pulley, -60 to 250 deg F, EPDM, Polyester Reinforced

Application

Compact Industrial Drives, Blowers and Exhausters, Laundry Machinery, Brick Machinery, Textile Machinery, Saw Mill and Woodworking Machinery

Features

Oil and heat resistant
Ideal for pulsating loads and long centers
Multiple V-belts in single unit construction
Browning® banded belts provide the belt solution for pulsing/shock loads and the demands of the aggregate industry
Banding material aids in preventing material from getting between the sheave and belts
Eliminates the possibility of belt turnover on narrow and long centers are banded belts assure all belts within the drive run in uniformity to the sheaves without any possibility of belt turnover, even when centers are very long
Special blend of fiberglass and polyester for belt cord flexibility and strength
Length tolerances 10X tighter than industry standard
Single belt fabric with no overlap for reduced vibration
Tubular woven fabric for lengthwise flexibility and cross rigidity
Ground form edges on AX, BX, 3VX and 5VX belts for reduced vibration

Specifications

Country of Origin:	US
Material:	EPDM
Minimum Pulley Diameter:	4.4 to 6.7/7.1 to 10.9/11.8 to 16 in
Number of Ribs:	3
Outside Length:	100 in
Reinforced Material:	Polyester
Section Size:	5VX
Temperature Range:	-60 to 250 deg F
Thickness:	17/32 in
Top Width:	5/8 in
