Actual Product May Vary From Image

3HB1-SN20 BRN

Name: 3HB1-SN20 BRN
Brand: Regal Rexnord
SKU: 3HB1-SN20 BRN
Availability: OutOfStock

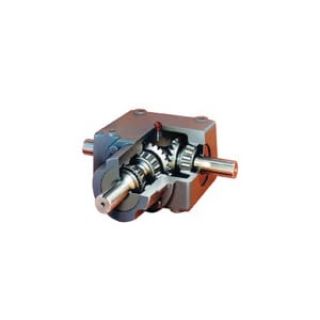

Browning® 1251362 Straight Type SN Bevel Gear Reducer, Shaft Input, Shaft Output, 1 hp, 2:1 Gear, 875 rpm Maximum Output, 36.013 in-lb Input/57.62 in-lb Output Torque Rating

Manufacturer: Regal Rexnord

Manufacturer part number: 1251362

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Straight Type SN

Description

Browning® cast iron bevel and spiral bevel gear reducers are constructed of rugged cast iron housings. These housings are line bored for precise gear and bearing alignment. To offer maximum performance, these reducers are designed with tapered roller and ball bearings. Browning® cast iron bevel and spiral bevel gear reducers are available in six sizes and ratios. These range from 1:1 to 3:1, with speed-up ratios available. Torque capacity ranges from 99 to 5942 in-lb.

Browning® Bevel Gear Reducer, Straight Type SN, 2:1 Gear Ratio, 1 hp, Shaft Input, Shaft Output, 5/8 in Dia x 1-1/2 in L Input, 5/8 in Dia x 1-1/2 in L Output, 875 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/57.62 in-lb Output, 1-19/32 in Centre Distance, 3/16 x 3/32 in Keyway, Horizontal Mount, Cast Iron, 3-3/16 in H

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Food, Forestry, Metals, Minerals, Mining, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Standards

AGMA Standard

Features

Rugged cast iron housings, line bored for precise gear and bearing alignment
Carburized alloy steel gears manufactured to AGMA standards for long life and quiet operation
Double-lip contact oil seals ride on hardened plunge ground shafts for leak free operation
Reducer size 3

Specifications

Centre Distance:	1-19/32 in
Country of Origin:	US
Dimensions:	3-3/16 in H
Gear Ratio:	2:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia x 1-1/2 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in
Material:	Cast Iron
Mounting Type:	Horizontal
Output Maximum Speed:	875 rpm
Output Size:	5/8 in Dia x 1-1/2 in L
Output Type:	Shaft
Torque Rating:	36.013 in-lb Input/57.62 in-lb Output
