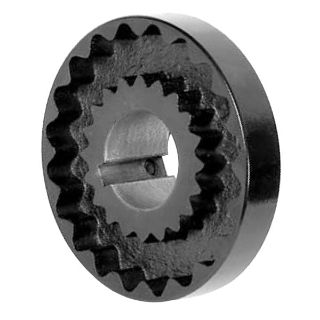

Actual Product May Vary From Image

3J FLNG 11MM 4X1.8MM KW LOV

Name: 3J FLNG 11MM 4X1.8MM KW LOV
Brand: Lovejoy
SKU: 3J FLNG 11MM 4X1.8MM KW LOV
Availability: OutOfStock

Lovejoy® S-Flex Endurance™ 68514441486 Type J Finished Bore Coupling Flange, 3J Coupling, 11 mm Dia Bore, 20.57 mm L Through Bore, 38.1 mm Dia Hub, Die Cast Zinc

Manufacturer: Lovejoy

Manufacturer part number: 68514441486

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Lovejoy®

Type

Type J Finished Bore

Description

Lovejoy® S-Flex Endurance™ Coupling Flange, Type J Finished Bore, 3J Coupling, 11 mm Bore, 38.1 mm Diameter Hub, 11.18 mm Hub Length, 4 x 1.8 mm Keyway, 9200 rpm Maximum, 20.57 mm Length Through Bore, 1/4-20 Screw, Die Cast Zinc

Standards

Features

The J-type flanges in sizes 3J and 4J are made from die cast of high strength zinc alloy (tensile strength of 41000 psi) and are furnished bore to size
J flanges are compatible with EPDM or neoprene sleeves
Each flange has a keyway and two setscrews (one setscrew over the key and one at 90 deg to the keyway)
The J-type coupling consists of two flanges and one sleeve

Specifications

Bore Diameter:	11 mm
Country of Origin:	US
Coupling Size:	3J
Hub Diameter:	38.1 mm
Hub Length:	11.18 mm
Keyway Size:	4 x 1.8 mm
Length Through Bore:	20.57 mm
Material:	Die Cast Zinc
Maximum Speed:	9200 rpm
Screw Size:	1/4-20
