3J FLNG 16MM 5X2.3MM KW LOV

Name: 3J FLNG 16MM 5X2.3MM KW LOV
Brand: Lovejoy
SKU: 3J FLNG 16MM 5X2.3MM KW LOV
Availability: OutOfStock

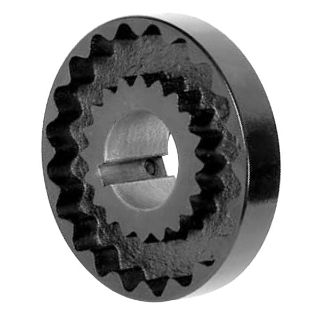

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

68514441490

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Type J Finished Bore

Description

Lovejoy® S-Flex Endurance™ Coupling Flange, Type J Finished Bore, 3J Coupling, 16 mm Bore, 38.1 mm Diameter Hub, 11.18 mm Hub Length, 5 x 2.3 mm Keyway, 9200 rpm Maximum, 20.57 mm Length Through Bore, 1/4-20 Screw, Die Cast Zinc

Standards

Features

The J-type flanges in sizes 3J and 4J are made from die cast of high strength zinc alloy (tensile strength of 41000 psi) and are furnished bore to size
J flanges are compatible with EPDM or neoprene sleeves
Each flange has a keyway and two setscrews (one setscrew over the key and one at 90 deg to the keyway)
The J-type coupling consists of two flanges and one sleeve

Specifications

Bore Diameter:	16 mm
Country of Origin:	US
Coupling Size:	3J
Hub Diameter:	38.1 mm
Hub Length:	11.18 mm
Keyway Size:	5 x 2.3 mm
Length Through Bore:	20.57 mm
Material:	Die Cast Zinc
Maximum Speed:	9200 rpm
Screw Size:	1/4-20
