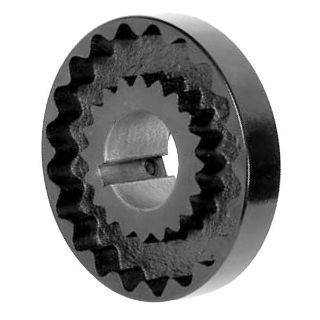

Actual Product May Vary From Image

3J FLNG 5/8 3/16X3/32 KW LOV

Name: 3J FLNG 5/8 3/16X3/32 KW LOV
Brand: Lovejoy
SKU: 3J FLNG 5/8 3/16X3/32 KW LOV
Price: 11.98 USD
Availability: OutOfStock

Lovejoy® S-Flex Endurance™ 68514436048 Type J Finished Bore Coupling Flange, 3J Coupling, 5/8 in Dia Bore, 0.81 in L Through Bore, 1-1/2 in Dia Hub, Die Cast Zinc

Manufacturer: Lovejoy

Manufacturer part number: 68514436048

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$11.98

Qty:

Product Details

Brand Name

Lovejoy®

Type

Type J Finished Bore

Description

Lovejoy® S-Flex Endurance™ Coupling Flange, Type J Finished Bore, 3J Coupling, 5/8 in Bore, 1-1/2 in Diameter Hub, 0.44 in Hub Length, 3/16 x 3/32 in Keyway, 9200 rpm Maximum, 0.81 in Length Through Bore, 1/4-20 Screw, Die Cast Zinc

Standards

Features

The J-type flanges in sizes 3J and 4J are made from die cast of high strength zinc alloy (tensile strength of 41000 psi) and are furnished bore to size
J flanges are compatible with EPDM or neoprene sleeves
Each flange has a keyway and two setscrews (one setscrew over the key and one at 90 deg to the keyway)
The J-type coupling consists of two flanges and one sleeve

Specifications

Bore Diameter:	5/8 in
Country of Origin:	US
Coupling Size:	3J
Hub Diameter:	1-1/2 in
Hub Length:	0.44 in
Keyway Size:	3/16 x 3/32 in
Length Through Bore:	0.81 in
Material:	Die Cast Zinc
Maximum Speed:	9200 rpm
Screw Size:	1/4-20
