Actual Product May Vary From Image

3KUMR-16M LEV

Name: 3KUMR-16M LEV
Brand: Leviton Manufacturing
SKU: 3KUMR-16M LEV
Availability: OutOfStock

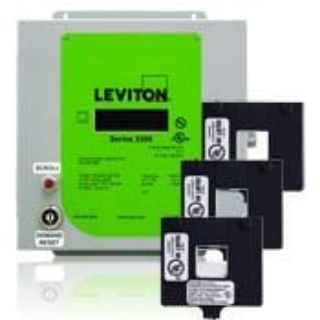

Leviton® 3KUMR-16M 3300 3-Phase Multi-Function Meter, 208/240/480 VAC, 1600/0.11 A, 60 Hz, NEMA 4X Enclosure

Manufacturer: Leviton Manufacturing

Manufacturer part number: 3KUMR-16M

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

3-Phase

Description

Leviton® Multi-Function Meter, 3-Phase, Series: 3300, 208/240/480 VAC, 1600/0.11 A, 60 Hz Frequency, LCD Display, 0.01 Accuracy, NEMA 4X Enclosure, -22 to 140 deg F, JIC Steel, 8.21 in L x 2.5 in W x 9.66 in H Dimensions

Application

For load profiling, benchmarking and commercial applications

Standards

Features

Isolated pulse output
Integrates easily with building management systems
Delivers universal voltage performance
Outputs kWh, demand - instant and peak, per phase and total kWh, kW, kVAR, VAR, A interval data
Utilizes split and solid core current transformers that are certified to all revenue-grade accuracy standards
Up to three sets of CTs per phase can be paralleled per meter
JIC steel indoor enclosure
Revenue grade accuracy
0.5% accuracy class
Installation diagnostics and Low-Voltage detection
Real-time clock with battery back-up for to U reading

Includes

(3) Split CTs and (1) Electric Meter

Specifications

Accuracy:	0.01
Amperage Rating:	1600/0.11 A
Country of Origin:	US
Dimensions:	8.21 in L x 2.5 in W x 9.66 in H
Display Type:	LCD
Enclosure Type:	NEMA 4X
Frequency Rating:	60 Hz
Material:	JIC Steel
Series:	3300
Temperature Rating:	-22 to 140 deg F
Voltage Rating:	208/240/480 VAC
