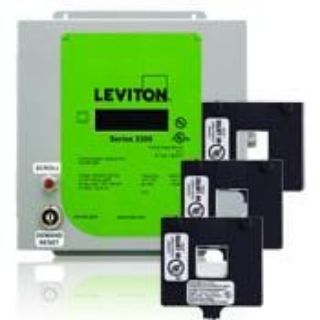

Picture of 3KUMR-1M LEV
Actual Product May Vary From Image

3KUMR-1M LEV

Leviton® 3KUMR-1M 3300 Multi-Function Meter, 208/480 VAC/240/480 VAC, 100 A, 60 Hz, NEMA 4X Enclosure
Manufacturer: Leviton Manufacturing
Manufacturer part number: 3KUMR-1M
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Description

Leviton® Multi-Function Meter, Series: 3300, 208/480 VAC/240/480 VAC, 100 A, 60 Hz, LCD, 0.5% Accuracy, NEMA 4X, -22 to 140 deg F, 8.21 x 9.66 in

Application

For load profiling and benchmarking

Standards

UL /cUL Listed | Title 24 Compliant | ASHRAE 90.1

Features

  • Isolated pulse output
  • Integrates easily with building management systems
  • Delivers universal voltage performance
  • Outputs kWh, demand - instant and peak, per phase and total kWh, kW, kVAR, VAR, AMPS interval data
  • Utilizes split and solid core current transformers (CTs) that are certified to all revenue-grade accuracy standards
  • Up to three sets of CTs per phase can be paralleled per meter
  • JIC steel indoor enclosure

Includes

(3) Split CTs , Electric Meter

Specifications

Accuracy:0.5%
Amperage Rating:100 A
Country of Origin:US
Dimensions:8.21 x 9.66 in
Display Type:LCD
Enclosure Type:NEMA 4X
Frequency Rating:60 Hz
Series:3300
Temperature Rating:-22 to 140 deg F
Voltage Rating:208/480 VAC/240/480 VAC
