Actual Product May Vary From Image

3KUMR-2M LEV

Name: 3KUMR-2M LEV
Brand: Leviton Manufacturing
SKU: 3KUMR-2M LEV
Availability: OutOfStock

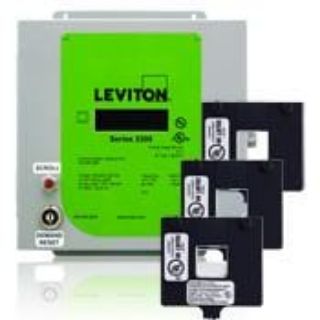

Leviton® 3KUMR-2M Split Core Meter Kit With RS485 Communication, 200:0.11 Current Ratio, 200 A Primary, 0.11 A Secondary, 208/480 VAC, 177 to 552 VAC, 60 Hz

Manufacturer: Leviton Manufacturing

Manufacturer part number: 3KUMR-2M

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Split Core

Description

Provides highly accurate, multi-functional smart-metering solutions for seamless integration into advanced building control management systems. The series 3300 and 3500 meters feature advanced communication protocols to enable tracking, monitoring and verification of real-time energy use and easy building management system integration. Series 3300 communicates via Modbus RTU or BACnet MS/TP over RS-485 and Ethernet enabled series 3500 features Modbus TCP/IP and BACnet IP. Both meters deliver universal voltage performance, offer standard isolated pulse outputs, and easily integrate with building management systems.

Leviton® Meter Kit, Split Core, 200:0.11 Current Ratio, 200 A Primary Current, 0.11 A Secondary Current, 208/480 VAC, 177 to 552 VAC, 60 Hz Frequency, 3 ph, 1% Accuracy, -30 to 60 deg C Meter, -20 to 50 deg C Display, 8.24 in L x 2.5 in W x 9.66 in H Dimensions

Application

Commercial Applications

Standards

ANSI C12.1 | ANSI C12.20 (0.5) | UL Listed | cUL Listed

Features

Enclosure: JIS steel
Cable size 18 to 14 AWG
Revenue grade accuracy 0.5% accuracy class
Up to 3 sets of CTs paralleled with no multipliers
Installation diagnostics
Low-Voltage detection
Real-time clock with battery back-up for to U reading

Specifications

Accuracy:	1%
Country of Origin:	US
Current Ratio:	200:0.11
Dimensions:	8.24 in L x 2.5 in W x 9.66 in H
Frequency Rating:	60 Hz
Phase:	3
Primary Current:	200 A
Secondary Current:	0.11 A
Temperature Rating:	-30 to 60 deg C Meter, -20 to 50 deg C Display
Voltage Rating:	208/480 VAC, 177 to 552 VAC
