3L220 GAT

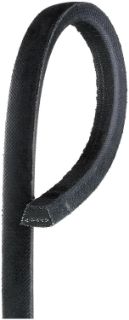

Picture of 3L220 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Rubber
Manufacturer part number:
3L220
product.name:
3L220 GAT
CBT Inventory
15
Vendor Inventory
Loading...
CBT - Cincinnati
13
CBT - Springboro
2
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$8.33 / EA

Description

Brand Name

Gates®

Type

Power Transmission

Description

Engineered with all the qualities of a great belt, including flexibility, durability and resistance to contaminants. It includes a thin profile, designed for small-diameter sheaves and a lower cord positioning to improve belt performance on light-duty belt drives and in your backside idler applications.
Gates®, 3L220, Belt, Power Transmission, 3 L Section, 0.38 in Top Width, 22 in Outside Length, 0.22 in Thickness, 1 Ribs, -22 to 140 deg F, SBR, Polyester Reinforced, Black

Application

Perfect for auxiliary automotive applications like electric windows, windshield wipers, and central locking systems, drive pumps, power tools, and domestic appliance applications, FHP motors and light-duty applications

Standards

ARPM/RMA IP-3-2 and IP-3-3 | REACH and RoHS 2 Compliant

Features

  • Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life
  • Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • Flex-Weave oil and heat resistant cover protects the belt core from the toughest environments
  • Perfect for auxiliary automotive applications like electric windows, windshield wipers, central locking systems, drive pumps, power tools, domestic appliance applications, FHP motors and light-duty applications

Includes

Thin Profile

Specifications

Color:Black
Country of Origin:MX
Material:SBR
Number of Ribs:1
Outside Length:22 in
Reinforced Material:Polyester
Section Size:3 L
Temperature Range:-22 to 140 deg F
Thickness:0.22 in
Top Width:0.38 in

Products Specifications

Brand Name
Gates
