3MM9316WI TUL TKN

3MM-WI manufactured with 25 deg contact angle, are for use on applications where the loading on the bearings is predominately thrust and a high degree of axial rigidity is a definite requirement. Typical applications for these are large vertical rotary surface grinders, horizontal and vertical disc grinders, and thrust bearing applications for heavy-duty lathes where the bearings must directly carry extremely high tail stock or chucking pressure.

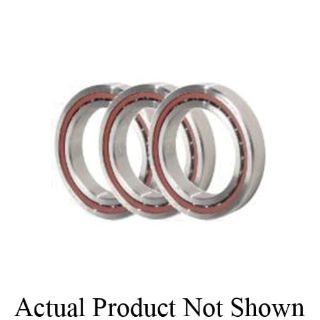

Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 3MM9300WI, 80 mm Bore Dia, 110 mm Outside Dia, 3 Rows, 16 mm Width, 25 deg Contact, 31900 N Dynamic/30500 N Static, Phenolic Cage, 10400 rpm Maximum
