3MMV9115HXVV SUL FS637 TKN

Name: 3MMV9115HXVV SUL FS637 TKN
Brand: Timken
SKU: 3MMV9115HXVV SUL FS637 TKN
Availability: OutOfStock

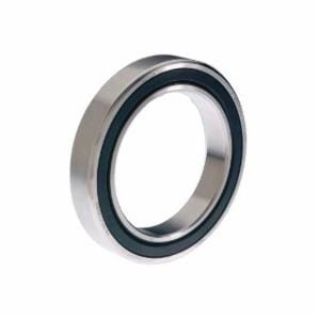

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

3MMV9115HXVVSULFS637

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken®

Type

Light Duty

Description

3MMV-HX VV possess all of the high-speed advantages of the HX but with true high-speed seals. These bearing seals protect lubricant from outside contaminants while ensuring internal lubricant retention, extending service life significantly.

Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 3MMV9100HX, 75 mm Bore, 115 mm OD, 1 Rows, 20 mm Width, 25 deg Contact Angle, Double Seal Closure, 26400 N Dynamic/20100 N Static Load, Phenolic Cage, 12700 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

Single and double-row ball screw
Very high-speed
High accuracy and stiffness
Low operating temperature
Low noise and vibration
Angular contact low shoulder on both inner and outer-ring
Kluber Isoflex NBU 15 grease lubricant

Specifications

Bore Diameter:	75 mm
Cage Material:	Phenolic
Closure Type:	Double Seal
Contact Angle:	25 deg
Load Capacity:	26400 N Dynamic/20100 N Static
Maximum Speed:	12700 rpm
Number of Rows:	1
Outside Diameter:	115 mm
Series:	3MMV9100HX
Width:	20 mm
