3MMV9120HX CR TUL TKN

Name: 3MMV9120HX CR TUL TKN
Brand: Timken
SKU: 3MMV9120HX CR TUL TKN
Availability: OutOfStock

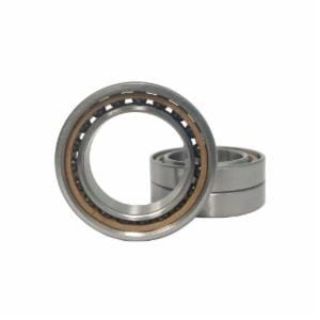

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

3MMV9120HX TUL

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken®

Type

Light Duty

Description

3MMV-HX are dimensionally interchangeable with equivalent 9100, 99100, 9300 and ISO series-10 and 19 bearings. These designs enable spindle heads to remove more material in less time while maintaining superior machining tolerances. This is achieved through a proven combination of unique ball complements with precision engineering raceway geometries.

Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 3MMV9100HX, 100 mm Bore Dia, 150 mm Outside Dia, 3 Rows, 24 mm Width, 25 deg Contact, 45500 N Dynamic/37000 N Static, Phenolic Cage, 9700 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

Single and double-row ball screw
Very high-speed
High accuracy and stiffness
Low operating temperature
Low noise and vibration
Angular contact low shoulder on both inner and outer-ring

Specifications

Bore Diameter:	100 mm
Cage Material:	Phenolic
Contact Angle:	25 deg
Load Capacity:	45500 N Dynamic/37000 N Static
Maximum Speed:	9700 rpm
Number of Rows:	3
Outside Diameter:	150 mm
Series:	3MMV9100HX
Width:	24 mm
