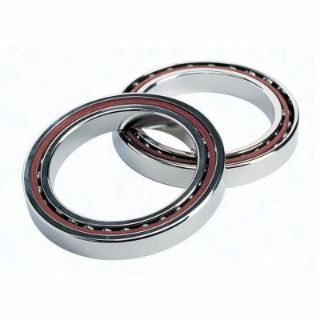

Picture of 3MMVC9311HX SUL TKN
Actual Product May Vary From Image

3MMVC9311HX SUL TKN

Timken® 3MMVC9311HX SUL 3MMV9300HX Light Duty Super Precision Angular Contact Ball Bearing With Ceramic Ball, 55 mm Dia Bore, 80 mm OD, 1 Row, 13 mm W, 25 deg, 13700 N Dynamic/7917 N Static Load
Manufacturer: Timken
Manufacturer part number: 3MMVC9311HX SUL
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,676.24

Product Details

Brand Name

Timken®

Type

Light Duty

Description

3MMV-HX are dimensionally interchangeable with equivalent 9100, 99100, 9300 and ISO series-10 and 19 bearings. These designs enable spindle heads to remove more material in less time while maintaining superior machining tolerances. This is achieved through a proven combination of unique ball complements with precision engineering raceway geometries.
Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 3MMV9300HX, 55 mm Bore Dia, 80 mm Outside Dia, 1 Rows, 13 mm Width, 25 deg Contact, 13700 N Dynamic/7917 N Static, Phenolic Cage, 22320 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

  • Single and double-row ball screw
  • Very high-speed
  • High accuracy and stiffness
  • Low operating temperature
  • Low noise and vibration
  • Angular contact low shoulder on both inner and outer-ring

Specifications

Bore Diameter:55 mm
Cage Material:Phenolic
Contact Angle:25 deg
Load Capacity:13700 N Dynamic/7917 N Static
Maximum Speed:22320 rpm
Number of Rows:1
Outside Diameter:80 mm
Series:3MMV9300HX
Width:13 mm
