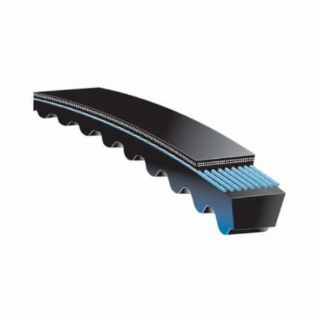

Actual Product May Vary From Image

3VX250 GAT

Name: 3VX250 GAT
Brand: Gates Rubber
SKU: 3VX250 GAT
Price: 15.63 USD
Availability: InStock

Gates® Super HC® 3VX250 Heavy Duty Molded Notch V-Belt, 3VX Section, 3/8 in W Top, 25 in L Outside, 21/64 in THK, EPDM

Manufacturer: Gates Rubber

Manufacturer part number: 3VX250

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$15.63

Qty:

Product Details

Brand Name

Gates®

Type

Heavy Duty Molded Notch

Description

Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as transmitting more horsepower than the classical cross-sections in the same amount of drive space.

Gates® Super HC® V-Belt, Heavy Duty Molded Notch, Series: 9412, 3VX Section, 3/8 in Top Width, 25 in Outside Length, 21/64 in Thickness, 1 Rib, 3.82 in Diameter Minimum Pulley, -70 to 250 deg F, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial applications, particularly where space, weight and horsepower capacity are critical

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
Patented ethylene material construction provides -70 to 250 deg F temperature range to resist belt cracking

Specifications

Country of Origin:	US
Material:	EPDM
Minimum Pulley Diameter:	3.82 in
Number of Ribs:	1
Outside Length:	25 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	3VX
Series:	9412
Temperature Range:	-70 to 250 deg F
Thickness:	21/64 in
Top Width:	3/8 in
