4 1/2H MMHUB KOP

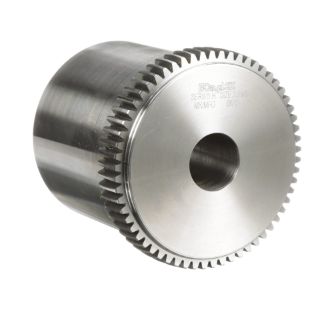

Picture of 4 1/2H MMHUB KOP
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1963388
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Kop-Flex®

Description

Kop-Flex® Mill Motor Hub, 4-1/2 Coupling, 6 in Bore Dia, 4770 rpm Maximum, 7-3/16 in Length Through Bore, Carbon Steel

Application

For FAST'S® motor frame size 812, 612, 814, 614, 816, 616, 818, 618, 620, AC25, AC30, AC40, AC50 series H AISE mill motor gear coupling

Features

  • Large bore capacity with O-ring seal design and the most economical gear coupling design
  • Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
  • Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
  • Flange interchangeable with all the competitors
  • Large gear tooth pitch diameter with high torque capacity
  • Close fitting, tight tolerance flange holes and bolt holes
  • Field replaceable and standard nitrile rubber O-ring seal
  • Grease lubrication required

Specifications

Bore Diameter:6 in
Coupling Size:4-1/2
Length Through Bore:7-3/16 in
Material:Carbon Steel
Maximum Speed:4770 rpm
