40-2NTRB UST

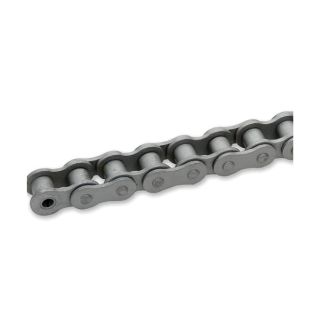

Tsubaki® 40-2NTRB Neptune® Drive Chain, 10 ft OAL, 1/2 in Pitch, 0.312 in Dia x 0.312 in W Roller
Manufacturer: US Tsubaki
Manufacturer part number: 40-2NTRB
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Tsubaki®

Description

Neptune® chain resists corrosion when exposed to harsh outdoor environments, including seawater. The exclusive Neptune® surface treatment process gives the chain its unique matte grey color and provides a protective finish that is more corrosion resistant than Nickel Plated chains. Neptune® chain has the same high maximum allowable load as our standard carbon steel roller chain.
Tsubaki® Drive Chain, Series: Neptune®, 1/2 in Pitch, 0.156 in Pin Dia, 0.312 in Roller Dia, 0.312 in Roller Width, 0.472 in Plate Height, 0.06 in Plate Thickness, 2 Strands, 10 ft Overall Length, Zinc Plated

Standards

ANSI 40

Features

  • Anti-corrosive and heat resistant
  • Riveted pin construction

Specifications

Country of Origin:CN
Finish:Zinc Plated
Number of Strands:2
Overall Length:10 ft
Pin Diameter:0.156 in
Pitch:1/2 in
Plate Height:0.472 in
Plate Thickness:0.06 in
Roller Diameter:0.312 in
Roller Width:0.312 in
Series:Neptune®
