Picture of 40 DLT INNER FLANGE ASSY LOV
Actual Product May Vary From Image

40 DLT INNER FLANGE ASSY LOV

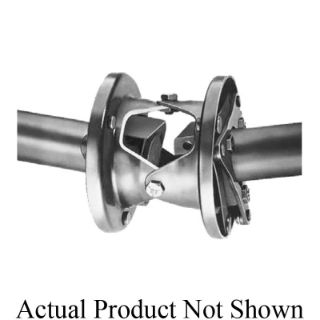

Lovejoy® 68514439022 Deltaflex Flex-Link Inner Flange With Hardware, 1-3/8 in Dia Bore, 4.38 in OD, 1.34 in L Through Bore, 2.56 in Dia Hub, Steel
Manufacturer: Lovejoy
Manufacturer part number: 68514439022
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$158.87

Product Details

Brand Name

Lovejoy®

Type

Flex-Link

Description

The patented Deltaflex Series of couplings offer maximum misalignment capabilities with negligible reactionary load, for longer equipment life. This all metal flex-link coupling requires no lubrication or other maintenance. Standard (type 1, 2 or 2A) Deltaflex coupling are comprised of two hubs, an Inner Flange (with hardware) and an outer flange. Flanges are available in stamped steel (standard) as well as stainless steel. All flex-links are precipitation hardened (PH 17-7) stainless steel.
Lovejoy® Inner Flange, Flex-Link, Series: Deltaflex, 1-3/8 in Bore, 4.38 in OD, 2.56 in Diameter Hub, 1.34 in Length Through Bore, 1/4-20 Screw, Steel, Metallic

Standards

ACMA Certified | ECCN EAR99 | EPTDA Approved | FPDA Motion and Control Network Member | Member of Hydraulic Institute | MPTA Standard | NFPA Member | PTDA Approved

Features

  • Maximum misalignment capabilities, with negligible reactionary load, for longer equipment bearing life
  • Operates as smoothly when misaligned as when perfectly aligned
  • No lubrication and no maintenance required
  • Equipment can be visually aligned, no special tools are required, which saves on installation time and cost
  • Eliminates premature equipment bearing and seal failure resulting from misalignment forces, this means greater equipment productivity
  • Torsionally stiff coupling with no backlash means it is capable of high speed applications, within catalog ratings
  • Provides long-term performance and economy
  • Without keyway

Specifications

Bore Diameter:1-3/8 in
Country of Origin:US
Finish:Metallic
Hub Diameter:2.56 in
Length Through Bore:1.34 in
Material:Steel
Outside Diameter:4.38 in
Screw Size:1/4-20
Series:Deltaflex
