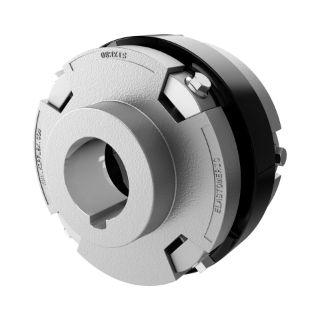

Actual Product May Vary From Image

40 EE FB KOP

Name: 40 EE FB KOP
Brand: Regal Rexnord
SKU: 40 EE FB KOP
Availability: OutOfStock

Kop-Flex® Elastomeric™ 2297844 Finished Bore Standard Resilient Coupling, 1/2 to 1-7/8 in Dia Bore, 5-11/16 in OD, 5-1/8 in OAL, 725 in-lb Continuous/2100 in-lb Peak Torque, 4100 rpm Max

Manufacturer: Regal Rexnord

Manufacturer part number: 2297844

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Kop-Flex®

Type

Finished Bore Standard

Description

Standard couplings type EE are generally used on close connected equipment and may be mounted for either wide or close shaft separations, at the userâ€™s option. This permits ready installation on existing shaft separations and eliminates moving the connected equipment to suit the coupling.

Kop-Flex® Elastomeric™ Resilient Coupling, Finished Bore Standard, 1/2 to 1-7/8 in Bore, 5-11/16 in OD, 5-1/8 in Overall Length, 5-3/8 in Dia Hub, 1-3/4 in Length Through Bore, 725 in-lb Continuous/2100 in-lb Peak Torque, 4100 rpm Maximum, -50 to 175 deg F

Application

Aggregate, Cement, Coal Power Generation, Food, HVAC, Marine, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper, Turbomachinery, Unit Handling, Water, Wastewater and Wind Power Generation Industries

Features

Non-lubricated design
Maintenance savings through easily replaceable rubber elements in the application, without moving the driving or driven equipment
Easy to assemble and operate in hot, wet, gritty tough environment
Widely used in hot strip mill roller table application
4 coupling size

Specifications

Bore Diameter:	1/2 to 1-7/8 in
Hub Size:	5-3/8 in Dia
Length Through Bore:	1-3/4 in
Maximum Speed:	4100 rpm
Outside Diameter:	5-11/16 in
Overall Length:	5-1/8 in
Temperature Rating:	-50 to 175 deg F
Torque Rating:	725 in-lb Continuous/2100 in-lb Peak
