40 ELEMENT KOP

Name: 40 ELEMENT KOP
Brand: Regal Rexnord
SKU: 40 ELEMENT KOP
Availability: OutOfStock

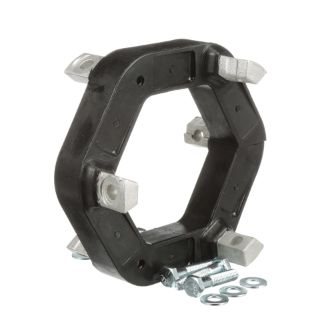

Kop-Flex® 1962653 Straight Jaw Coupling Element, 40 Coupling, 1-5/8 in L, 5-11/16 in OD, 4100 rpm Max, Rubber

Manufacturer: Regal Rexnord

Manufacturer part number: 1962653

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Kop-Flex®

Type

Straight Jaw

Description

Kop-Flex® Coupling Element, Straight Jaw, 40 Coupling, 1-5/8 in Length, 5-11/16 in OD, 725 in-lb Continuous/2100 in-lb Peak Torque, 4100 rpm Maximum, For Use With: Elastomeric™ Type EE Aluminum Coupling, -50 to 175 deg F, Rubber

Features

Wrap around design the split insert permits easy installation of the flexible element in a simple assembly sequence with no blind assembly required and shafts may be aligned prior to its installation
Rubber in compression this is the most efficient way to transfer torque through an elastomeric element, much more efficient than rubber in shear

Includes

Fasteners

Specifications

Country of Origin:	US
Coupling Size:	40
Length:	1-5/8 in
Material:	Rubber
Maximum Speed:	4100 rpm
Outside Diameter:	5-11/16 in
Suitable For Use With:	Elastomeric™ Type EE Aluminum Coupling
Temperature Rating:	-50 to 175 deg F
Torque Rating:	725 in-lb Continuous/2100 in-lb Peak
