Actual Product May Vary From Image

404000A10M050 WOO

Name: 404000A10M050 WOO
Brand: Molex/Woodhead
SKU: 404000A10M050 WOO
Price: 36.96 USD
Availability: OutOfStock

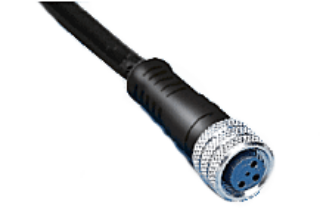

Brad® Nano-Change® Woodhead® 404000A10M050 120086 Single Ended Cordset, M8 Straight Female x Pigtail Connector, 5 m L Cable, 4 Poles, A-Coded Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 404000A10M050

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$36.96

Qty:

Product Details

Brand Name

Brad®

Type

Single Ended

Description

Nano-Change® connectors are design to withstand harsh-industrial and weather environments. These connectors are used to interconnect miniature sensors and actuators found in industrial control applications. The small, compact M8 design also makes these connectors well suited for applications requiring a sealed connector in very tight spaces. Nano-Change® cordsets, receptacles and pre-wired distribution boxes are available in 3, 4 and 5-pole IEC compliant configurations.

Brad® Nano-Change® Woodhead® Cordset, Single Ended, Series: 120086, Straight Female x Pigtail Connector, M8 Connector, TPE Connector, 24 AWG Cable, 5 m Cable Length, PVC Cable, 4 Pole, A-Coded Keyway, 60 VAC/75 VDC, 3 A, Black/Blue/Brown/White Wire Pin, NEMA 6 NEMA Rating

Application

8 mm Proximity Switches, Miniature Photo Eyes, Other Miniature I/O Devices and Sensors, Robotic End of Arm Tooling, Specialty Sensors Semiconductor Assembly Equipment, Reed and Hall Effect Switches

Standards

CSA File No. LR6837 | UL File No. E152210 | UL 2661

Features

Nano-Change® with threaded coupler
Overmold materials designed for industrial environments, provides stress relief
Coupling nut for high degree of environmental protection or snap version for fast mating and unmating
Gold plated contacts standard for high reliability
Nickel plated brass coupling nut for corrosion resistance
Viton® O-ring prevents harsh chemicals from destroying the integrity of the connection

Specifications

Amperage Rating:	3 A
Cable Length:	5 m
Cable Material:	PVC
Cable Type:	24 AWG
Connector Material:	TPE
Connector Size:	M8
Connector Type:	Straight Female x Pigtail
Country of Origin:	MX
Keyway:	A-Coded
NEMA Rating:	NEMA 6
Number of Poles:	4
Series:	120086
Voltage Rating:	60 VAC/75 VDC
Wire Pin Colors:	Black/Blue/Brown/White
