Actual Product May Vary From Image

4040X4 BRN

Name: 4040X4 BRN
Brand: Regal Rexnord
SKU: 4040X4 BRN
Availability: OutOfStock

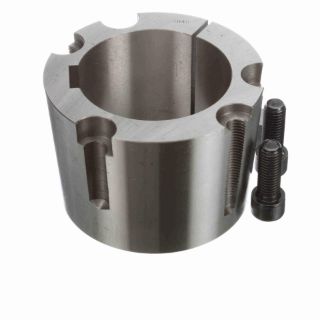

Browning® 3751310 Taper Lock Bushing, 4 in Dia Bore, 5-3/4 in Dia Barrel, 4 in OAL, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3751310

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Description

Browning® Taper Lock Bushing, 4 in Bore Dia, 5-3/4 in Barrel Dia, 1-1/2 in/ft Taper, 5.54 in Bolt Circle, 3 Bolt Holes, 5/8 x 1-3/4 in Screw, 77300 in-lb, For Use With: Browning® Sprockets and HPT Chain Synchronous Belt Drives, 4 in Overall Length, 1 x 1/2 in Keyway, Steel

Application

Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Features

Size 4040 bushing
Key to key drive cap screws act as an external key
1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft

Specifications

Barrel Diameter:	5-3/4 in
Bolt Circle Diameter:	5.54 in
Bore Diameter:	4 in
Country of Origin:	CN
Keyway Size:	1 x 1/2 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	4 in
Screw Size:	5/8 x 1-3/4 in
Suitable For Use With:	Browning® Sprockets and HPT Chain Synchronous Belt Drives
Taper:	1-1/2 in/ft
Torque Rating:	77300 in-lb
