406006FX TKN

Name: 406006FX TKN
Brand: Timken
SKU: 406006FX TKN
Availability: OutOfStock

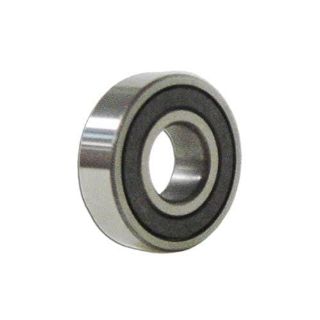

EDT Stainless Radial Ball Bearing

Manufacturer: Timken

Manufacturer part number: 406006FX

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

EDT

Description

EDT supplies a full range of product in the world’s most popular design series. EDT’s deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

EDT Stainless Radial Ball Bearing | 30 mm 1.2 in Bore | 55 mm 2.2 in OD

Features

Premium products are designed to operate longer in demanding applications and environments
Our products are designed for efficiency. You can maintain optimum operating efficiency despite chemical washdowns and wet environments

Specifications

Bearing Material:	Stainless Steel
Bearing Type:	Unmounted Ball Bearing
Bore Size (ID) - in:	1.1811
Bore Size (ID) - mm:	29.99994
Bore Type:	Cylindrical
Component (I/R; O/R assembly):	Component
Dynamic Load Rating:	2970
Fillet Radius - Inch:	0.39
Fillet Radius - Millimeter:	9.906
Inner Ring Width - Inch:	0.5118
Inner Ring Width - Millimeter:	12.99972
Internal Clearance:	CN
Load Rating UOM:	LB
Manufacturer Product Page Link:	https://www.edtcorp.com/docs/2017-Product-Catalog.pdf
Material - Rolling Elements (Ball or Roller):	Stainless Steel
Operating Temperature Max:	200F
Operating Temperature Min:	-55F
Outer Diameter - in:	2.1654
Outer Diameter - mm:	55.00116
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.5118
Outer Ring Width - Millimeter:	12.99972
Overall Width - in:	0.5118
Overall Width - mm:	12.99972
Relubricatable:	No
Retainer Material:	Stainless Steel
Retainer Type:	Stainless Steel
Rolling Element:	Ball Bearing
Row Type:	Single Row
Self Aligning:	No
Static Load Rating:	1860
