Actual Product May Vary From Image

40B21 BRN

Name: 40B21 BRN
Brand: Regal Rexnord
SKU: 40B21 BRN
Availability: OutOfStock

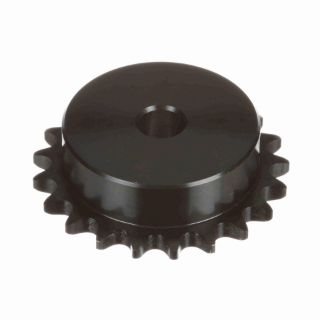

Browning® 1122357 Single Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 5/8 in Dia Bore, 3.62 in OD, #40 Chain, 21 Teeth, 1/2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1122357

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Minimum Bore Type B

Description

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 5/8 in Bore Dia, 3.62 in Outside Dia, #40 Chain, 21 Teeth, 1/2 in Pitch, 3.355 in, 2-3/4 in Hub Dia, 1 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

Larger hub diameter allows larger bore capacity
Lasts longer than sprockets made from low carbon steel
Maximum bore shown will accommodate standard keyways and setscrews over keyway
Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
Hub projection on one side
High quality, high carbon steel
For use with 1/2 in pitch ANSI chain

Specifications

Bore Diameter:	5/8 in
Chain Size:	#40
Country of Origin:	CN
Hub Diameter:	2-3/4 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	21
Outside Diameter:	3.62 in
Pitch:	1/2 in
Pitch Diameter:	3.355 in
