Actual Product May Vary From Image

40B21F-1 UST

Name: 40B21F-1 UST
Brand: US Tsubaki
SKU: 40B21F-1 UST
Price: 32.92 USD
Availability: OutOfStock

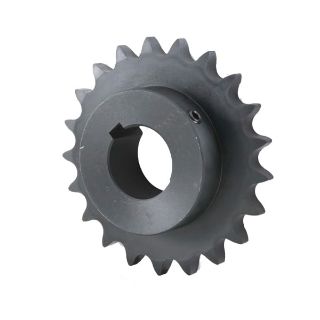

Tsubaki® 40B21F-1 Finished Bore Type B Single Pitch Roller Chain Sprocket, 1 in Dia Bore, 3.62 in OD, #40 Chain, 21 Teeth, 1/2 in Pitch, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: 40B21F-1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$32.92

Qty:

Product Details

Brand Name

Tsubaki®

Type

Finished Bore Type B

Alternate Supplier #

Applied Industrial Technologies - 116055123
Motion Industries - 00168437

Description

Associated with "B" style sprockets where the inside diameter of the hub is machined with a standard keyway and two set screws. Finished bore hubs can also be machined to specific requirements depending on the needs of the application.

Tsubaki® Single Pitch Roller Chain Sprocket, Finished Bore Type B, 1 in Bore Dia, 3.62 in Outside Dia, #40 Chain, 21 Teeth, 1/2 in Pitch, 3.355 in, 2-3/4 in Hub Dia, 5/16 in Screw, 1/4 x 1/8 in Keyway, 1 in Length Through Bore, Carbon Steel

Application

Oil and Gas, Lumber, Mining, Primary Metals, Material Handling, Conveyor, Civil Engineering Projects, Machine Tool, Marine, Packaging Machinery, Pulp and Paper, Food Processing and Forestry

Standards

PTDA and CEMA Standard

Specifications

Bore Diameter:	1 in
Chain Size:	#40
Country of Origin:	CN
Hub Diameter:	2-3/4 in
Keyway Size:	1/4 x 1/8 in
Length Through Bore:	1 in
Material:	Carbon Steel
Number of Teeth:	21
Outside Diameter:	3.62 in
Pitch:	1/2 in
Pitch Diameter:	3.355 in
Screw Size:	5/16 in
