40B22SS MSG

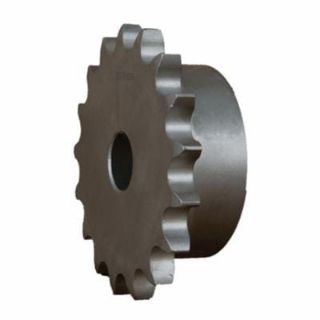

Martin 40B22SS Stock Bore Type B Single Pitch Roller Chain Sprocket, 5/8 in Dia Bore, 3.778 in OD, #40 Chain, 22 Teeth, 1/2 in Pitch, Stainless Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 40B22SS
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$221.99

Product Details

Brand Name

Martin

Type

Stock Bore Type B

Description

Stainless steel sprockets are stocked as plates with no hubs and as "B"s with a hub on one side. They are all ready to be bored or modified to fit specific applications.
Martin Single Pitch Roller Chain Sprocket, Stock Bore Type B, 5/8 in Bore Dia, 3.778 in Outside Dia, #40 Chain, 22 Teeth, 1/2 in Pitch, 3.513 in, 2-7/8 in Hub Dia, 1 in Length Through Bore, Stainless Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

Hub one side

Specifications

Bore Diameter:5/8 in
Chain Size:#40
Country of Origin:US
Hub Diameter:2-7/8 in
Length Through Bore:1 in
Material:Stainless Steel
Number of Teeth:22
Outside Diameter:3.778 in
Pitch:1/2 in
Pitch Diameter:3.513 in
