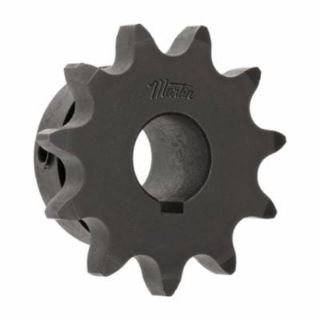

Actual Product May Vary From Image

40BS19HT 1 MSG

Name: 40BS19HT 1 MSG
Brand: Martin Sprocket & Gear
SKU: 40BS19HT 1 MSG
Price: 46.37 USD
Availability: OutOfStock

Martin Saber Tooth® 40BS19HT 1 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Hardened Teeth and Keyway, 1 in Dia Bore, 3.296 in OD, #40 Chain, 19 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40BS19HT 1

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$46.37

Qty:

Product Details

Brand Name

Martin

Type

Bored-to-Size Type BS

Description

These finished bore sprockets are hardened, shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.

Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 1 in Bore Dia, 3.296 in Outside Dia, #40 Chain, 19 Teeth, 1/2 in Pitch, 3.038 in, 2-1/2 in Hub Dia, 0.313-18 x 0.313 in Screw, 1/4 x 1/8 in Keyway, 1 in Length Through Bore, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

Keyway is on center line of tooth
Stock finished bores
Precise machining and processes ensure consistent finish and high quality
Bores are concentric to pitch line, minimizing run out
2 set screws keyed on centerline of tooth

Includes

(2) Setscrews

Specifications

Bore Diameter:	1 in
Chain Size:	#40
Country of Origin:	US
Hub Diameter:	2-1/2 in
Keyway Size:	1/4 x 1/8 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	19
Outside Diameter:	3.296 in
Pitch:	1/2 in
Pitch Diameter:	3.038 in
Screw Size:	0.313-18 x 0.313 in
