Actual Product May Vary From Image

40BTB32 MSG

Name: 40BTB32 MSG
Brand: Martin Sprocket & Gear
SKU: 40BTB32 MSG
Price: 74.66 USD
Availability: InStock

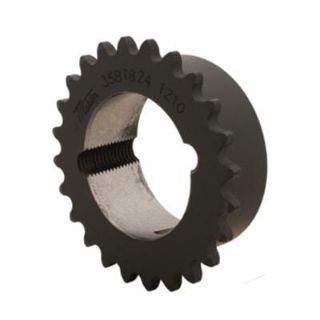

Martin 40BTB32 Taper Bushed Type B Single Pitch Roller Chain Sprocket, 5.377 in OD, #40 Chain, 32 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40BTB32

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$74.66

Qty:

Product Details

Brand Name

Martin

Type

Taper Bushed Type B

Description

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Martin Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 5.377 in Outside Dia, #40 Chain, 32 Teeth, 1/2 in Pitch, 5.101 in, 3-1/2 in Hub Dia, 1 in Length Through Bore, 1610 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Bushing Type:	1610 Taper Lock
Chain Size:	#40
Country of Origin:	US
Hub Diameter:	3-1/2 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	32
Outside Diameter:	5.377 in
Pitch:	1/2 in
Pitch Diameter:	5.101 in
