40H17H MSG

Name: 40H17H MSG
Brand: Martin Sprocket & Gear
SKU: 40H17H MSG
Price: 46.51 USD
Availability: OutOfStock

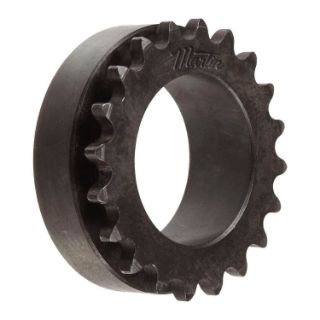

Martin 40H17H Type 3 Single Strand Solid Bushed Roller Chain Sprocket With Recess Groove and Hardened Teeth, 3/8 to 1-1/2 in Dia Bore, 2.975 in OD, #40 Chain, 17 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40H17H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$46.51

Qty:

Product Details

Brand Name

Martin

Type

Type 3 Single Strand Solid Bushed

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Roller Chain Sprocket, Type 3 Single Strand Solid Bushed, 3/8 to 1-1/2 in Bore, 2.975 in OD, #40 Chain, 17 Teeth, 1/2 in Pitch, 2.7211 in Pitch Diameter, 2-1/2 in Diameter Hub, 7/8 in Length Through Bore, MST® H Bushing, Steel

Standards

Features

Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturer's split-taper bushings
Manufactured of high carbon steel

Specifications

Bore Diameter:	3/8 to 1-1/2 in
Bushing Type:	MST® H
Chain Size:	#40
Hub Diameter:	2-1/2 in
Length Through Bore:	7/8 in
Material:	Steel
Number of Teeth:	17
Outside Diameter:	2.975 in
Pitch:	1/2 in
Pitch Diameter:	2.7211 in
