Actual Product May Vary From Image

40NP R 10FT MOR

Name: 40NP R 10FT MOR
Brand: Regal Rexnord
SKU: 40NP R 10FT MOR
Availability: OutOfStock

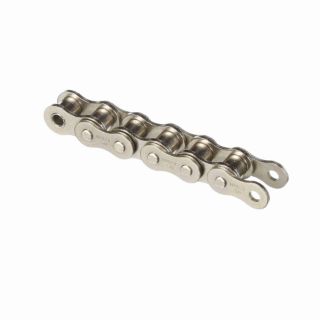

Morse® 321253 Riveted Roller Chain, 10 ft OAL, 1/2 in Pitch, 0.312 in Dia x 5/16 in W Roller, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 321253

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Riveted

Description

Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.

Morse® Roller Chain, Riveted, 1/2 in Pitch, 0.156 in Pin Diameter, 0.63 in Pin Length, 0.312 in Roller Diameter, 5/16 in Roller Width, 0.466 in Plate Height, 0.06 in Plate Thickness, 1 Links, 1 Strands, 3700 lb Tensile Strength, 10 ft Overall Length, Steel, Nickel Plated

Application

Aggregate, Cement, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI B29.1

Features

Created for applications requiring high horsepower at low speeds
Unmatched quality and performance
All components are plated before assembly
The strength of standard steel chain at a fraction of the price of stainless steel

Specifications

Country of Origin:	CN
Finish:	Nickel Plated
Material:	Steel
Number of Links:	1
Number of Strands:	1
Overall Length:	10 ft
Pin Diameter:	0.156 in
Pin Length:	0.63 in
Pitch:	1/2 in
Plate Height:	0.466 in
Plate Thickness:	0.06 in
Roller Diameter:	0.312 in
Roller Width:	5/16 in
Tensile Strength:	3700 lb
