40Q60 BRN

Name: 40Q60 BRN
Brand: Regal Rexnord
SKU: 40Q60 BRN
Price: 355.31 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1170265

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$355.31 / EA

Description

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

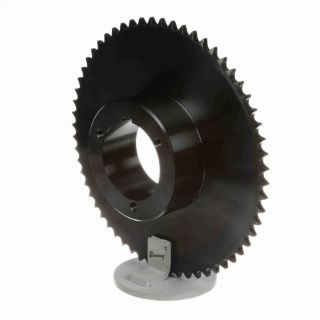

Browning® Roller Chain Sprocket, Single Strand, 3/4 in Bore Dia, 9.841 in Outside Dia, #40 Chain, 60 Teeth, 1/2 in Pitch, 9.554 in, 4-1/8 in Hub Dia, 2-1/2 in Length Through Bore, Type 4 Split Taper Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
External key higher torque capacity, aligns bolt holes
Provides key-to-key drive
Double split barrel improved clamping
Solid flange true concentricity
Longer barrel better support on the shaft
For use with 1/2 in pitch ANSI chain
Browning offers one of the largest selection of application shaft ready sprockets in the industry
Split Taper Bushing are available in popular Inch, Metric and Spline bore
Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Specifications

Bore Diameter:	3/4 in
Bushing Type:	Type 4 Split Taper
Chain Size:	#40
Country of Origin:	CN
Hub Diameter:	4-1/8 in
Length Through Bore:	2-1/2 in
Material:	Steel
Number of Teeth:	60
Outside Diameter:	9.841 in
Pitch:	1/2 in
Pitch Diameter:	9.554 in
