Actual Product May Vary From Image

40SH35 BRN

Name: 40SH35 BRN
Brand: Regal Rexnord
SKU: 40SH35 BRN
Availability: OutOfStock

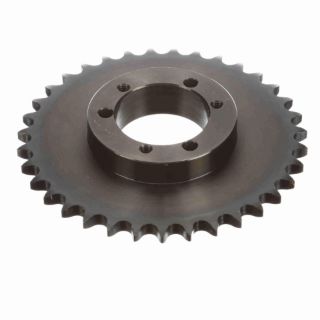

Browning® 3330727 Single Strand Roller Chain Sprocket, 1/2 in Dia Bore, 5.855 in OD, #40 Chain, 35 Teeth, 1/2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3330727

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand, 1/2 in Bore Dia, 5.855 in Outside Dia, #40 Chain, 35 Teeth, 1/2 in Pitch, 5.578 in, 2.7 in Hub Dia, 1.2 in Length Through Bore, Type SH QD® Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Reverse mounting possible
For use with 1/2 in pitch ANSI chain

Specifications

Bore Diameter:	1/2 in
Bushing Type:	Type SH QD®
Chain Size:	#40
Country of Origin:	CN
Hub Diameter:	2.7 in
Length Through Bore:	1.2 in
Material:	Steel
Number of Teeth:	35
Outside Diameter:	5.855 in
Pitch:	1/2 in
Pitch Diameter:	5.578 in
