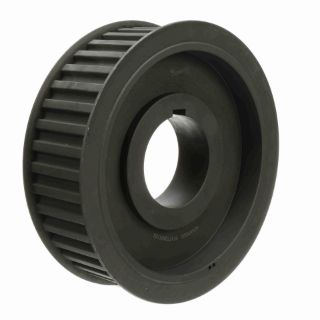

Actual Product May Vary From Image

40XHR400 BRN

Name: 40XHR400 BRN
Brand: Regal Rexnord
SKU: 40XHR400 BRN
Availability: OutOfStock

Browning® Gearbelt® 1057983 Type 12 Synchronous Flanged Pulley, 1-3/8 to 3-5/8 in Split Taper Bore, 11.031 in OD, 40 Grooves, 11.141 in Dia Pitch, 4.688 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1057983

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type 12

Description

Browning® Gearbelt® Synchronous Flanged Pulley, Type 12, Split Taper Bore, 1-3/8 to 3-5/8 in Bore, 11.031 in OD, 11.141 in Pitch Diameter, 40 Grooves, 7/8 in Pitch, 4.688 in Face Width, 11-11/16 in Diameter Flange, 5-3/8 in Diameter Hub, 0.188 in Hub Projection, R2 Bushing, 5-5/32 in Overall Length, For Use With: 4 in W Type XH400 Belt, Cast Iron

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed no slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	1-3/8 to 3-5/8 in
Bore Type:	Split Taper
Bushing Type:	R2
Country of Origin:	US
Face Width:	4.688 in
Flange Diameter:	11-11/16 in
Hub Diameter:	5-3/8 in
Hub Projection:	0.188 in
Material:	Cast Iron
Number of Grooves:	40
Outside Diameter:	11.031 in
Overall Length:	5-5/32 in
Pitch:	7/8 in
Pitch Diameter:	11.141 in
Suitable For Use With:	4 in W Type XH400 Belt
