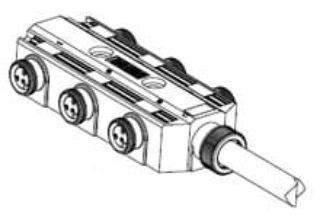

Actual Product May Vary From Image

410P606-20 WOO

Name: 410P606-20 WOO
Brand: Molex/Woodhead
SKU: 410P606-20 WOO
Availability: OutOfStock

Brad® Mini-Change® 410P606-20 130060 6-Port Female Distribution Junction Box With 6.1 m Molded Cable and LED, 600 VAC/VDC, 7 A, 3 Poles

Manufacturer: Molex/Woodhead

Manufacturer part number: 410P606-20

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Brad®

Type

6-Port Female

Description

Brad® Mini-Change® Connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low-resistance connection, the patented Quad Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

Brad® Mini-Change® Distribution Junction Box, 6-Port Female, Series: 130060, 600 VAC/VDC, 7 A, 3 Poles, IP67, Side Mount, NEMA 6, PBT, Yellow, 6.7 in Height, 3.23 in Width

Features

Patented Quad-Beam™ socket contact with stainless steel sleeve
Maintains consistent pressure on the male pin to ensure optimum conductivity
Molded key indicator
Easier alignment and mating of connector
Prevents the entry of water during temporary submersion at a limited depth
Gold over nickel plated contacts
High performance, long lasting plating that maintains low resistance through many mate/unmate cycles
Integral strain relief
Provides 100 lb minimum cable strain relief and radiates stress in side loaded conditions
Single input/output per port

Specifications

Amperage Rating:	7 A
Color:	Yellow
Country of Origin:	MX
Enclosure Type:	IP67
Height:	6.7 in
Material:	PBT
Mounting Type:	Side
NEMA Rating:	NEMA 6
Number of Poles:	3
Series:	130060
Voltage Rating:	600 VAC/VDC
Width:	3.23 in
