Actual Product May Vary From Image

41AW2-300 LEV

Name: 41AW2-300 LEV
Brand: Leviton Manufacturing
SKU: 41AW2-300 LEV
Availability: OutOfStock

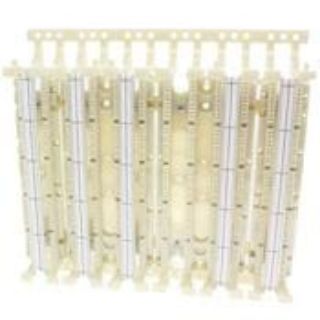

Leviton® GigaMax® 41AW2-300 110-Style Wiring Block With Legs, Cross Connect Block, 300 Pair Count, CAT 5e

Manufacturer: Leviton Manufacturing

Manufacturer part number: 41AW2-300

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

110-Style

Alternate Supplier #

Grainger - 25NN71

Description

The cross connect shall be Cat 5e 110-style wiring blocks, mountable to a wall or backboard to provide 110-termination capable of supporting voice, security and Cat 5e data applications, including high megabit and shared sheath applications when used with Cat 5e rated cabling. The 110 rack mount blocks shall mount to a 19 in distribution frame or hinged wall mount bracket. The components shall be UL listed and ANSI/ TIA-568-C compliant. Blocks shall support 50, 100 or 300-pair densities with provision for ANSI/TIA-606-B compliant labeling. Plastic bases and blocks shall be made of fire retardant plastic rated UL 94-V-0.

Leviton® GigaMax® Wiring Block, 110-Style, Cross Connect Block Type, 300 Pair Count, Category: CAT 5e, Wall Mount, Plastic, 10.87 in H x 10.7 in W x 3.3 in D

Application

Building Entrance Facilities, Telecommunications Closets, Equipment Rooms to Provide Fixed Cross Connections For Voice, Security, Data and Commercial Applications

Standards

UL Listed | ANSI/TIA-568-C.2 | UL94 V-0 Flammability Rating

Features

Use where space limitations and low cost are factors
Mount on wall or backboard
Route cable bundles either adjacent to wiring bases or underneath units with legs
Route individually marked cables from both left and right sides
Rack mount panel back plates are made of painted black 16 ga steel

Includes

Connectors, Patch Cords , a Variety of Universal , Pre-Configured Panel

Specifications

Block Type:	Cross Connect
Category Type:	CAT 5e
Dimensions:	10.87 in H x 10.7 in W x 3.3 in D
Material:	Plastic
Pair Count:	300
Specifications:	Wall Mount
