Actual Product May Vary From Image

420H300 BRN

Name: 420H300 BRN
Brand: Regal Rexnord
SKU: 420H300 BRN
Availability: OutOfStock

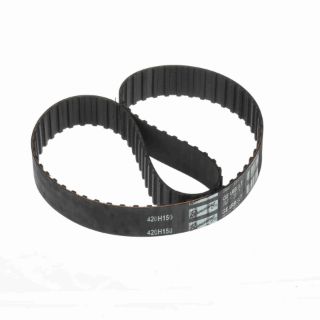

Browning® 1097955 Type H Synchronous Belt, 84 Teeth, 1/2 in Pitch, 42 in OAL, 3 in W, Neoprene

Manufacturer: Regal Rexnord

Manufacturer part number: 1097955

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type H

Description

Browning® Gearbelt® Synchronous Belt, Type H, 84 Teeth, 1/2 in Pitch, 42 in Overall Length, 3 in Width, 180 deg F, Neoprene, Fiberglass Reinforced, Black

Application

Aggregate, Cement, Agriculture, Minerals, Mining, Oil, Gas, Packaging Machinery and Unit Handling Industries

Features

Molded teeth - shear resistance teeth designed to provide smooth positive engagement with gearbelt pulleys
High tensile cord - specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
Compression section - bonds to belt cords for protections against dirt, grease, oil, ozone, and other environmental hazards
Dual timing belts - Browning® offers a full line of dual timing belts which can provide 100% load capacity form either side
Constant speed no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Wide belt speed range

Specifications

Color:	Black
Country of Origin:	US
Material:	Neoprene
Number of Teeth:	84
Overall Length:	42 in
Pitch:	1/2 in
Reinforced Material:	Fiberglass
Temperature Range:	180 deg F
Width:	3 in
