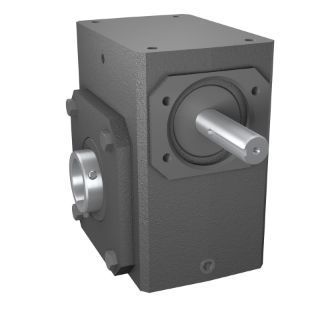

Picture of 422 10/1 A WR 2.188 HUB
Actual Product May Vary From Image

422 10/1 A WR 2.188 HUB

Hub City® PowerCubeX® 0230-16835 W420PCX Right Angle Single Reduction Style A Worm Gear Reducer, Shaft Input, Hollow Bore Output, 13.94 hp Input, 10:1 Gear, 175 rpm Maximum Output, 4326 in-lb Output Torque Rating
Manufacturer part number: 0230-16835
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: W420PCX, 10:1 Gear Ratio, 13.94 hp Input, Shaft Input, Hollow Bore Output, 1.25 in Dia x 3.47 in L Input, 2.188 in Dia Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4326 in-lb Output, 4-1/4 in Centre Distance, 1/4 x 1/8 in Input Keyway, 86.2 % Efficiency, Conventional Oil Lubrication, Cast Iron, 8-1/2 in W x 11-3/8 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and Increased efficiency
  • Alloy shafting
  • FKM seals

Specifications

Centre Distance:4-1/4 in
Dimensions:8-1/2 in W x 11-3/8 in H
Efficiency:86.2 %
Gear Ratio:10:1
Horsepower:13.94 hp Input
Input Maximum Speed:1750 rpm
Input Size:1.25 in Dia x 3.47 in L
Input Type:Shaft
Keyway Size:1/4 x 1/8 in Input
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:175 rpm
Output Size:2.188 in Dia
Output Type:Hollow Bore
Series:W420PCX
Torque Rating:4326 in-lb Output
