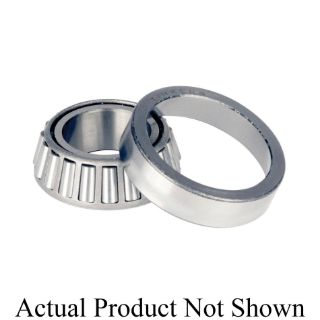

Actual Product May Vary From Image

42381 90076 TKN

Name: 42381 90076 TKN
Brand: Timken
SKU: 42381 90076 TKN
Price: 1,715.54 USD
Availability: OutOfStock

Tapered Roller Bearing Single Assembly Prec.

Manufacturer: Timken

Manufacturer part number: 42381-90076

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,715.54

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Single Assembly Prec. | Imperial | 96.8 mm 3.8 in Bore | 148.4 mm 5.8 in OD | 28.6 mm 1.1 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90076
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	43400
Inner Race Width (in):	1.1406
Inner Race Width (mm):	28.97124
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	5.8437
Outer Diameter (mm):	148.42998
Outer Diameter Type:	Straight OD
Outer Race Width (in):	0.8438
Outer Race Width (mm):	21.43252
Overall Width (in):	1.125
Overall Width (mm):	28.575
Precision class:	Class 0 (Precision)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	3.8125
Shaft Size (mm):	96.8375
Static Load Rating:	54300
